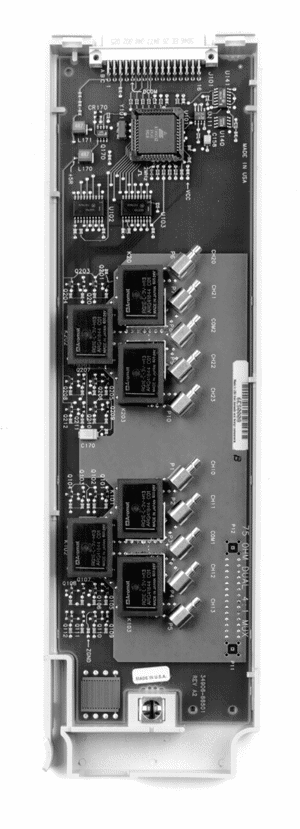

34905A 2 GHz Dual 1:4 RF Mux, 50 Ohm Module

"Dual 4 Channel RF Multiplexer 2 GHz bandwidth, 50 Ohm Cascade together for up to 16:1 multiplexer The Keysight 34905A RF multiplexer module for the 34970A/34972A Data Acquisition/Switch Unit offers broadband switching capabilities for high-frequency and pulsed signals. Use it to route test signals between your device under test and your signal generator, oscilloscope, spectrum analyzer, or other instrumentation. The RF multiplexers are arranged as two independent 1 x 4 multiplexers, each with a common shield and a switched center conductor. Connections can be made directly to SMB inputs with 2 GHz usable bandwidth, or to the BNC-to-SMB adapters provided with 1 GHz bandwidth. Multiple banks may be cascaded together for applications requiring even larger topologies-- create a stubless 16:1 multiplexer in a single frame. Standard Product Includes: 1 34905A, Dual 4-Channel 50 Ohm RF Multiplexer Module 1 Functional Test Certificate 10 Cables, 50 Ohm (SMB to BNC)"
