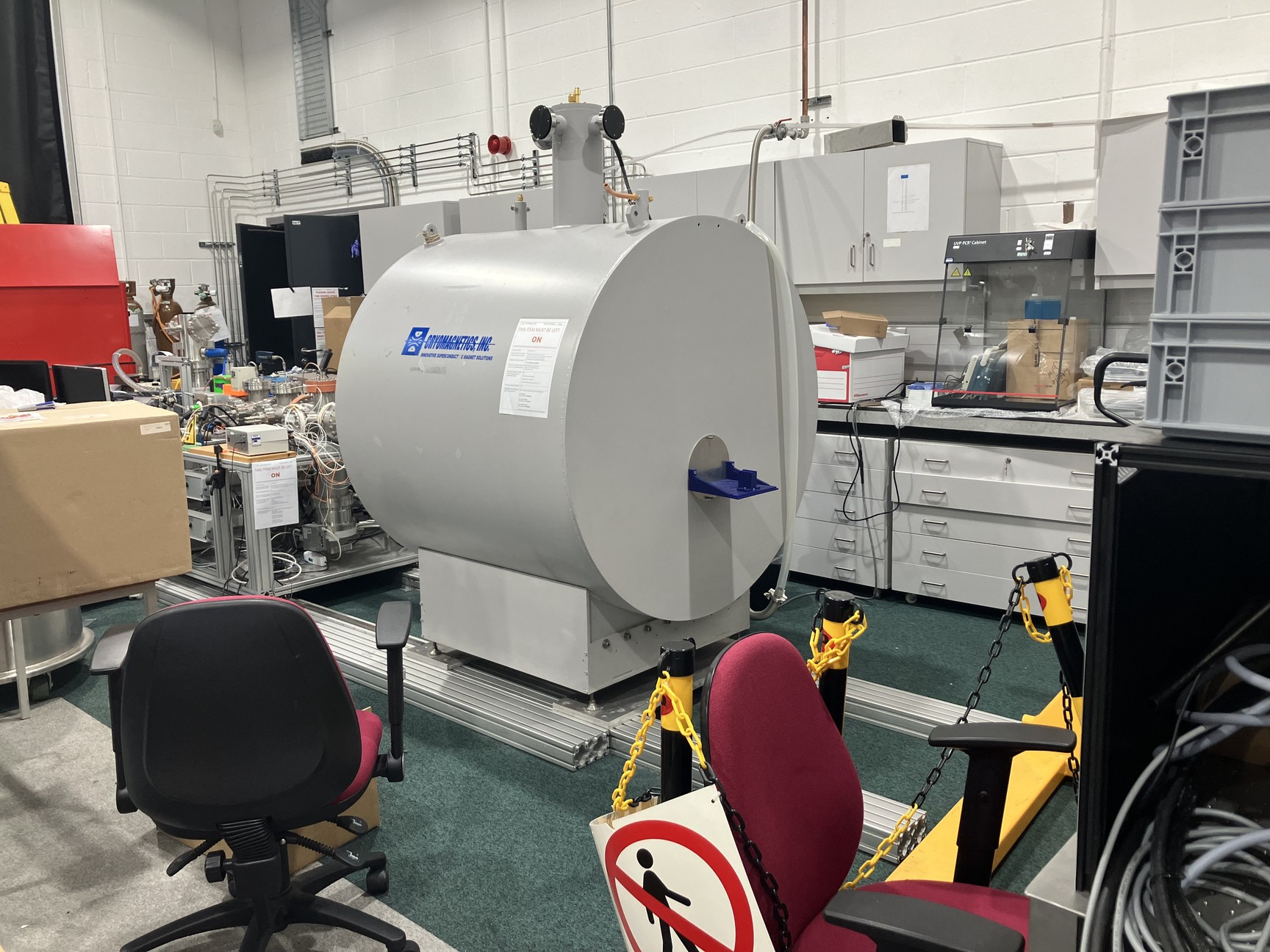

Cryomagnetics Inc 12T Horizontal Superconducting Magnet with CS-4 & LM-500

Description Cryomagnetics Inc 12T Horizontal Superconducting Magnet with CS-4 & LM-500 This system was removed from a university laboratory where it was surplus to requirements. It is a 12T horizontal superconducting magnet with a 120mm diameter bore. The magnet features a high homogeneity central region, previously used for FT-ICR mass spectrometry measurements, and is also suitable for small-scale MRI applications. It is actively shielded with a low fringe field and incorporates a liquid helium cooled coil with an outer liquid nitrogen shield dewar. The previous owner stated it is in full working order. The system has been refilled and maintained continuously over its lifetime with no issues and no quenches outside of training during charging. Please note; The weight (2500kg) is approximate. Includes: • Magnet, discharged state (run down in 2023), flushed with nitrogen gas • Manufactured ~2009, installed at university by Cryomagnetics soon after • Run down and moved once in ~2010 • Insulation under vacuum • All seals and burst discs intact and ready to use • Instruction manual (paper) • Cryomagnetics Inc Model CS-4 Bipolar Superconducting Magnet Power Supply 115v (Serial No: 3166) • Cryomagnetics Model 4G Superconducting Magnet Power Supply Operating Instruction Manual for the 4G Magnet Power Supply • Cryomagnetics Inc Liquid Cryogen Level Monitor Model LM-500 (Serial No: 3742)
