TEM Vacuum Chamber Parts 60cm Diameter, 98cm Height on Aluminium Bench

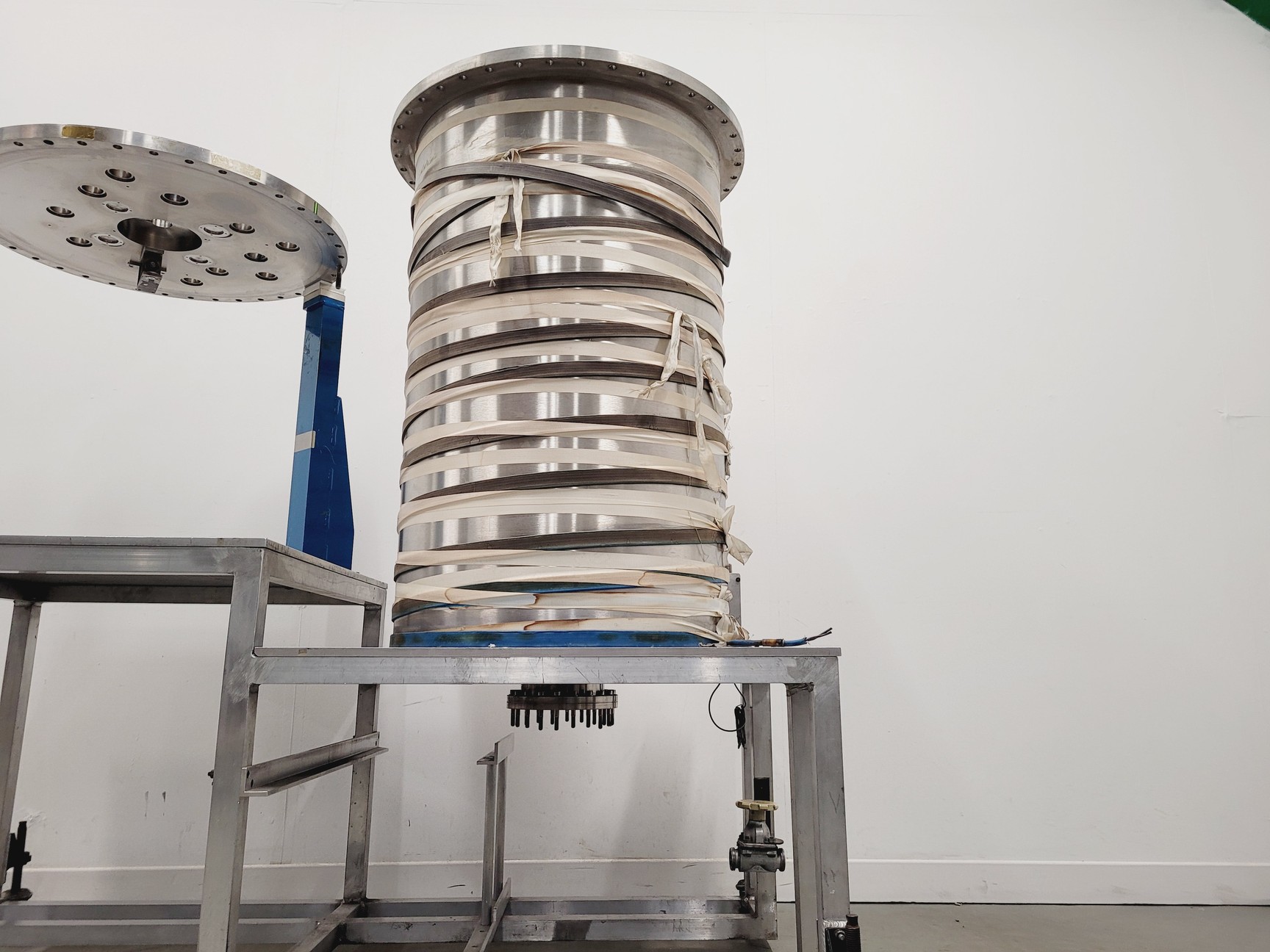

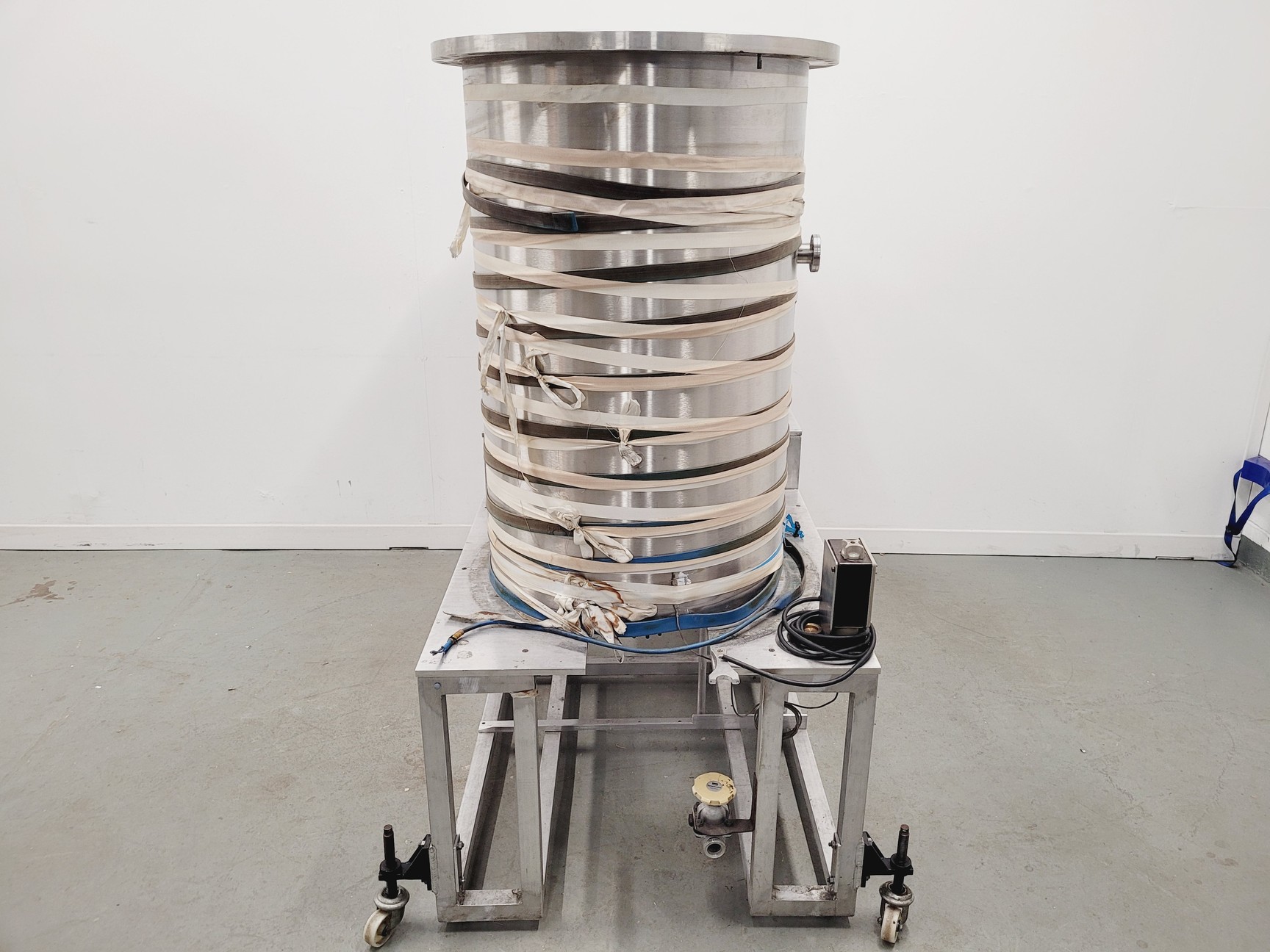

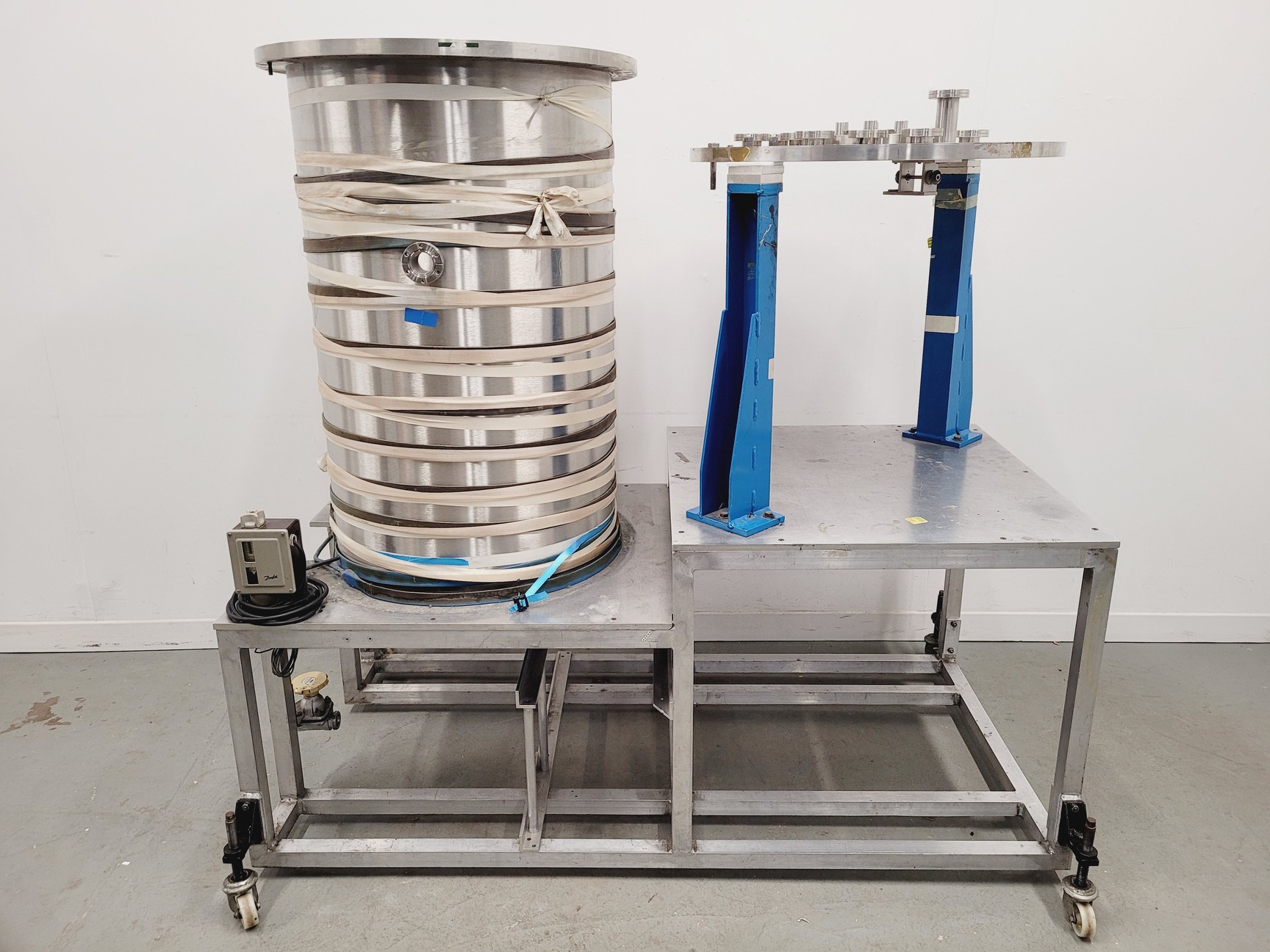

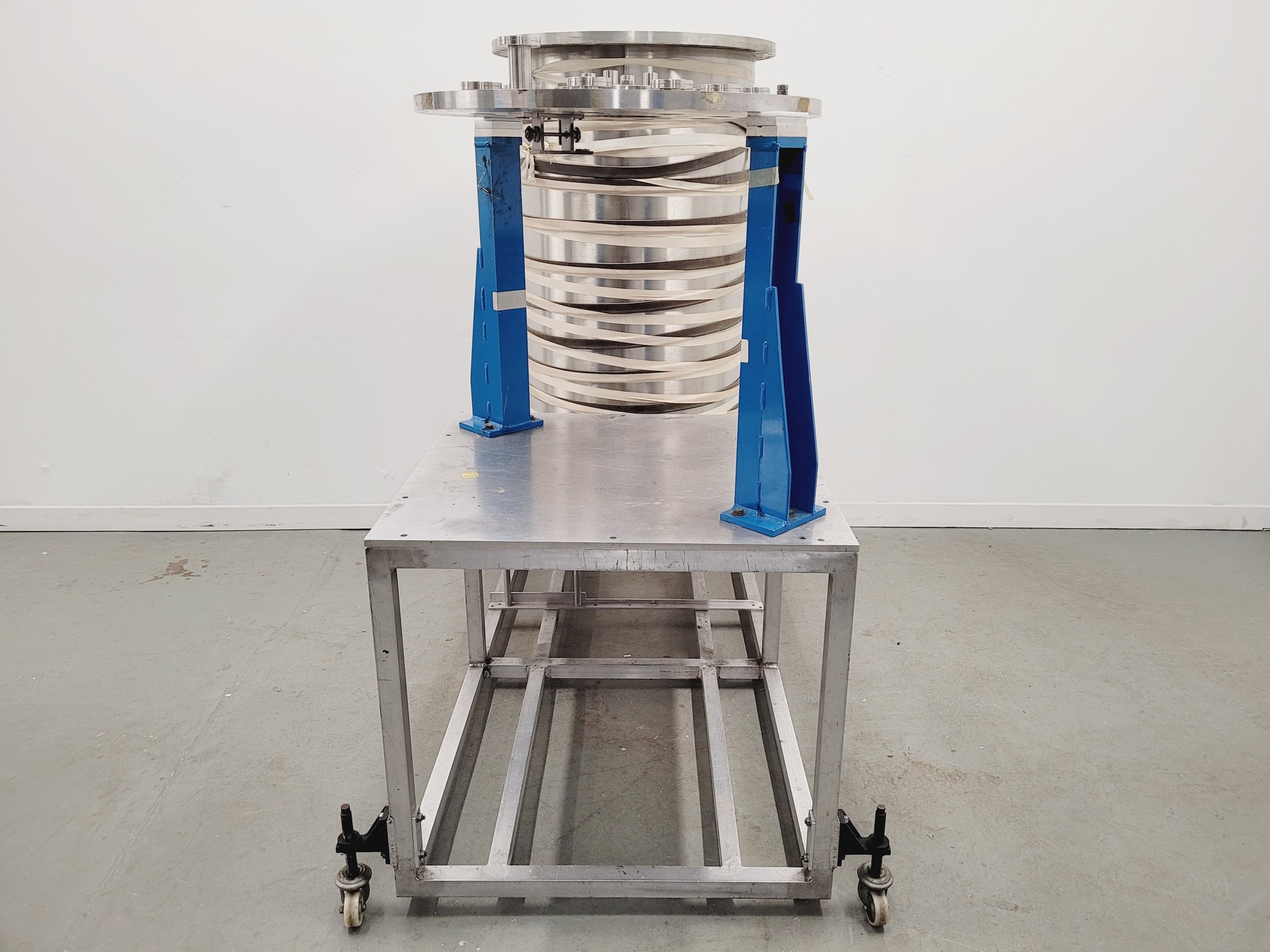

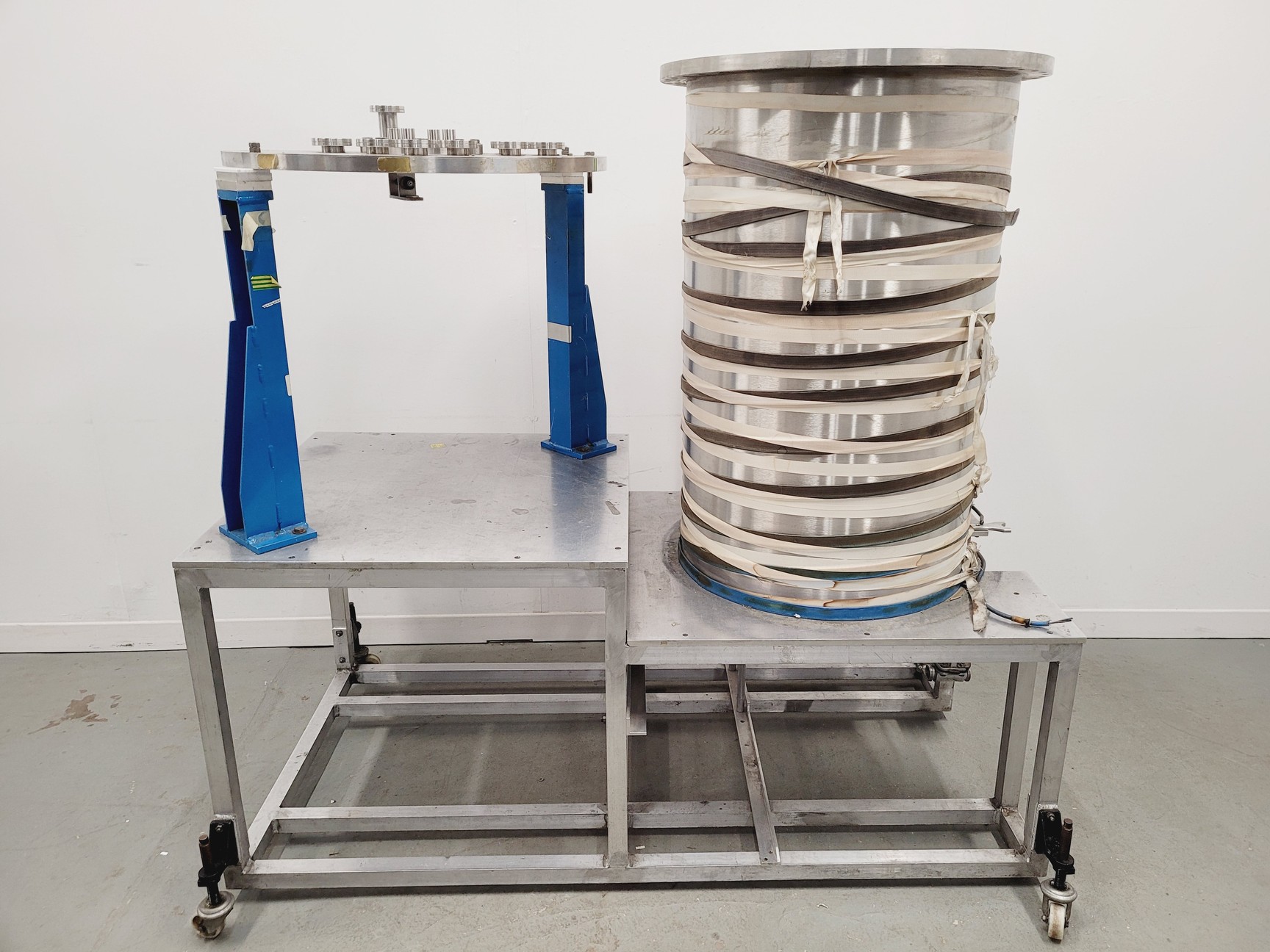

Description TEM Vacuum Chamber Parts – 60cm Diameter, 98cm Height on Aluminium Bench This item was removed from a university lab where it was surplus to requirements. This stainless steel vacuum chamber was previously used in an optical vacuum experiment. Due to the presence of a rubber seal, it is not suitable for applications requiring very low vacuum levels but remains a functional system for various laboratory uses. Main Chamber Vessel: • Material: Approx. 5mm gauge stainless steel • Diameter: 60cm • Height: 98cm • Flange: 25mm gauge flange with O-ring seal for lid connection • Side Port: 1 x flanged port, 35mm internal diameter • Base Flange: 15cm diameter with 20 fixing holes around the periphery Lid: • Diameter: 71cm • Fixings: 40 fixing holes around the periphery • Ports: 13 x flanged ports, 35mm internal diameter Heating Element: • Heating strap wrapped around chamber body • Danfoss heat controller (disconnected; untested) Bench Stand: • Frame: 38mm square-section aluminium • Tabletop: 13mm aluminium plate • Dimensions: 166cm (L) x 80cm (W) • Heights: Two working levels – 74cm and 58cm • Castors: 4 x castors, adjustable to lower bench securely onto the floor
