Zeiss Examiner.Z1 Axio Upright with Laser System LSM7

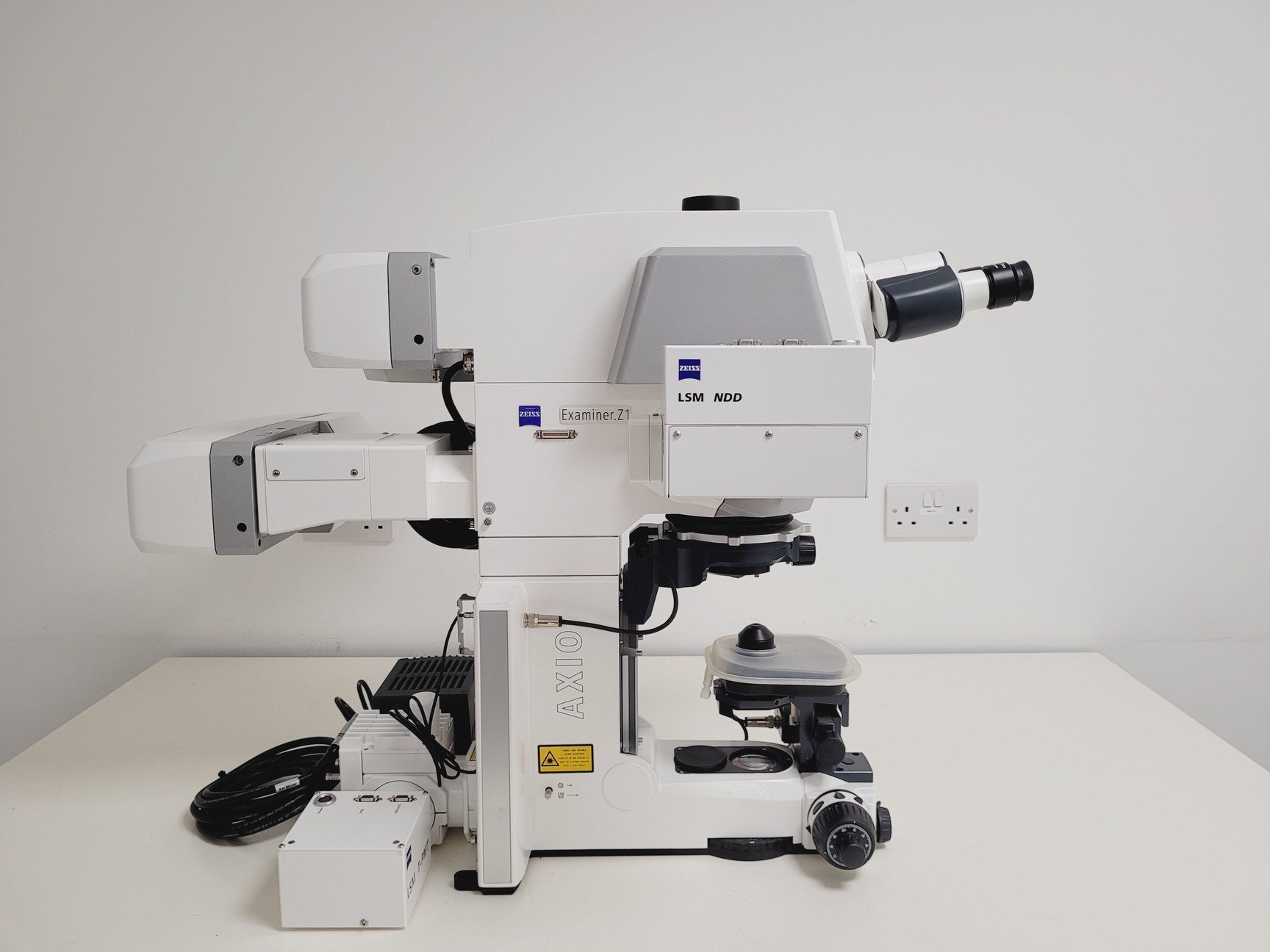

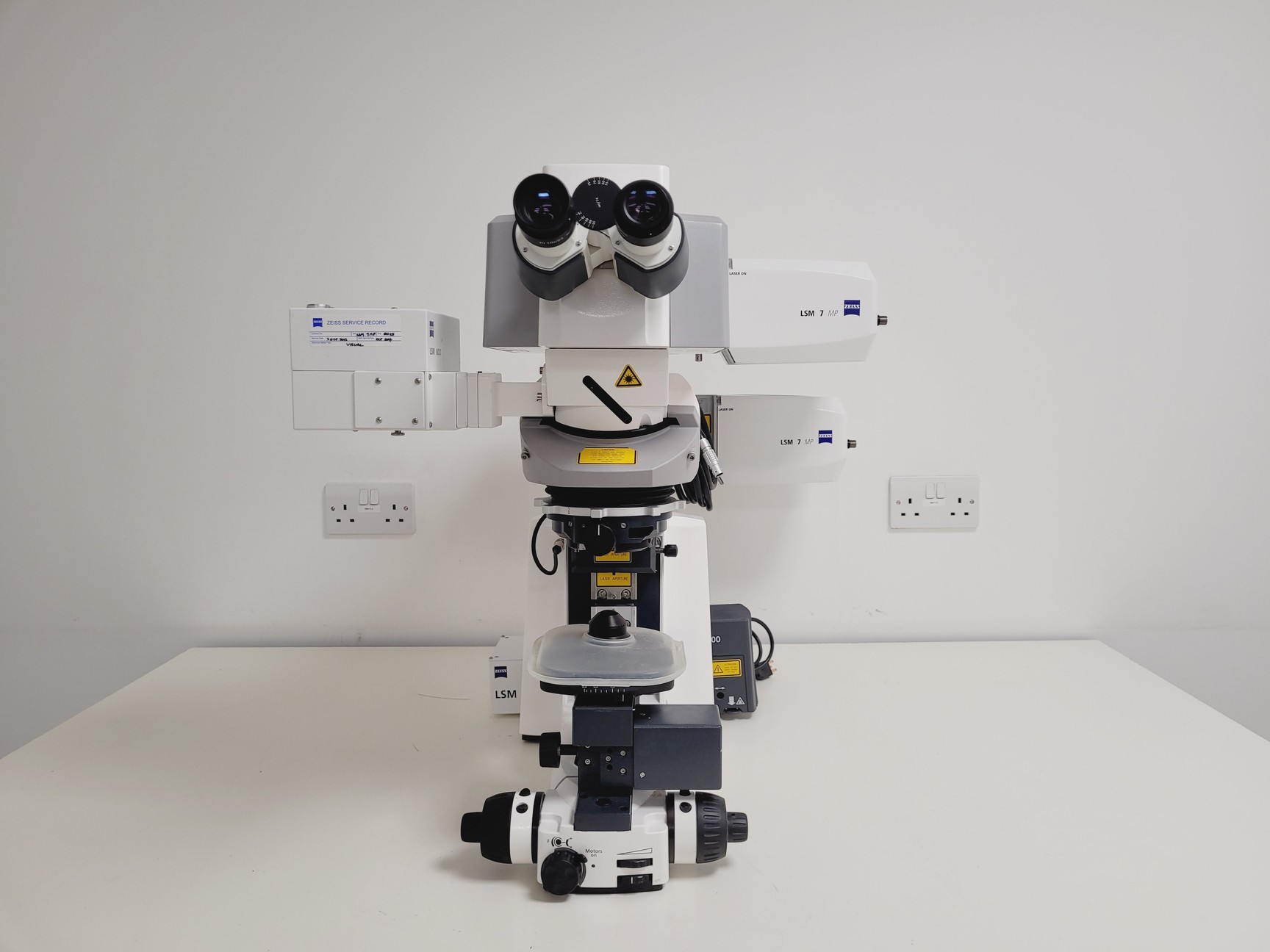

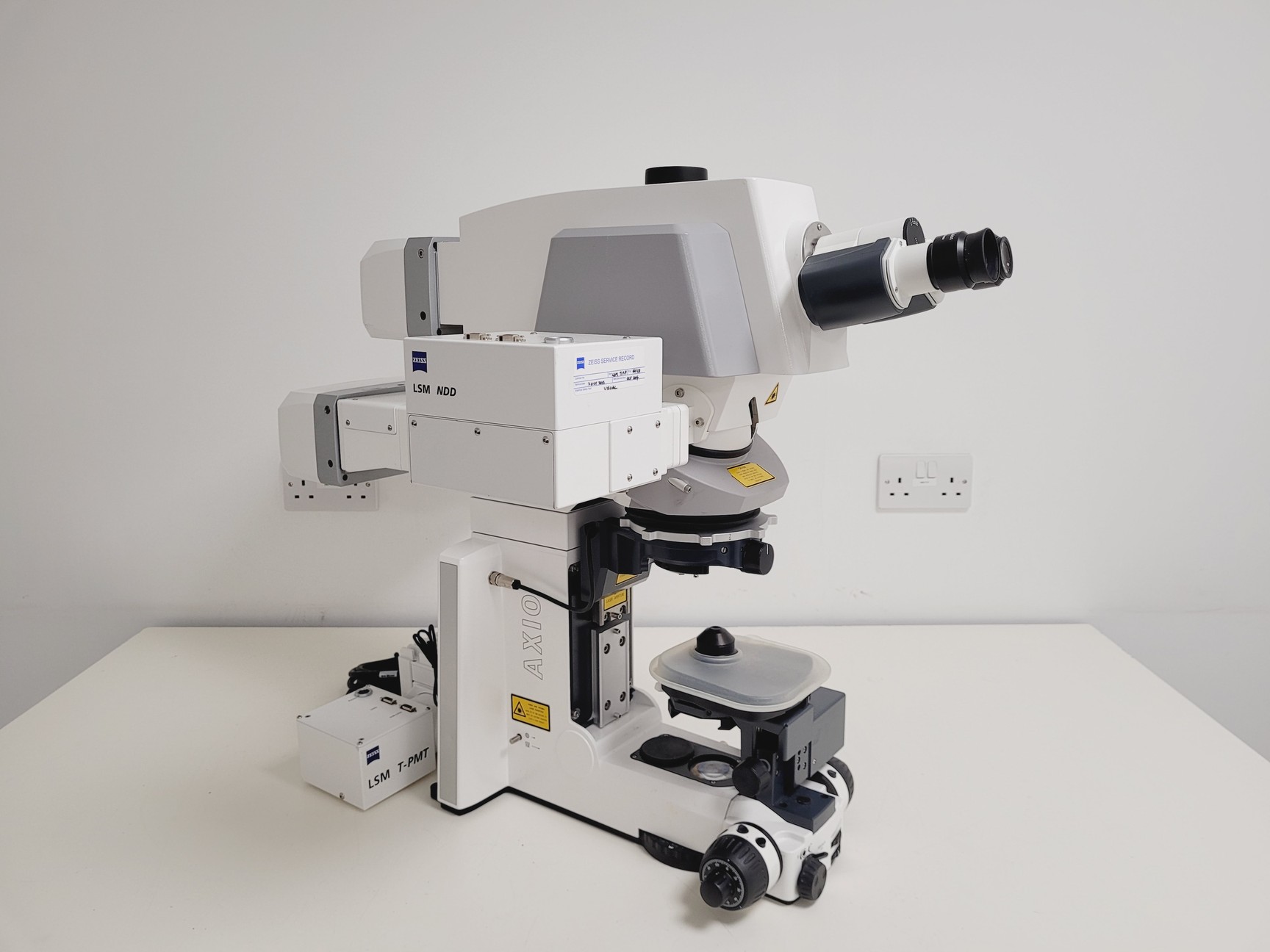

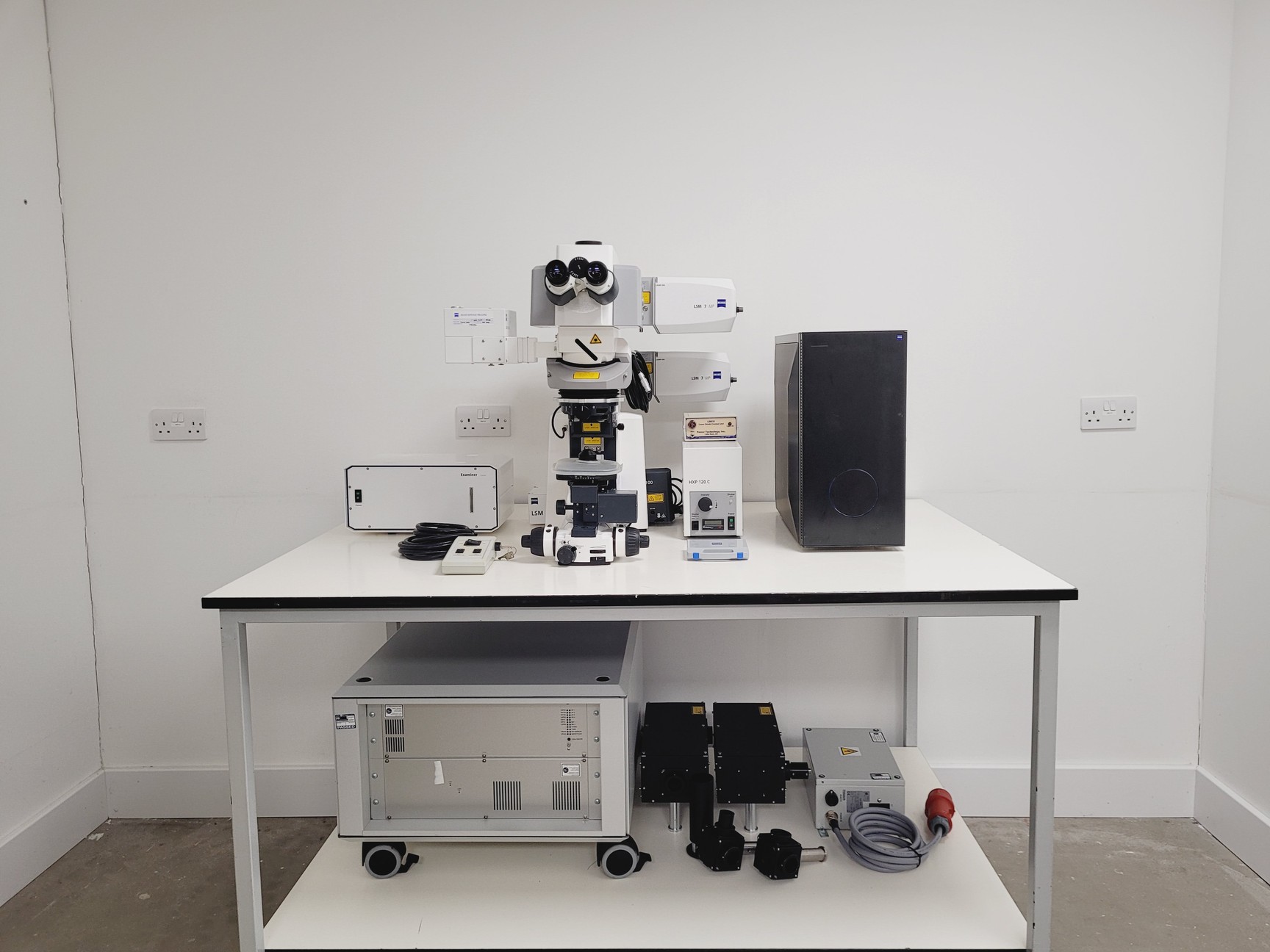

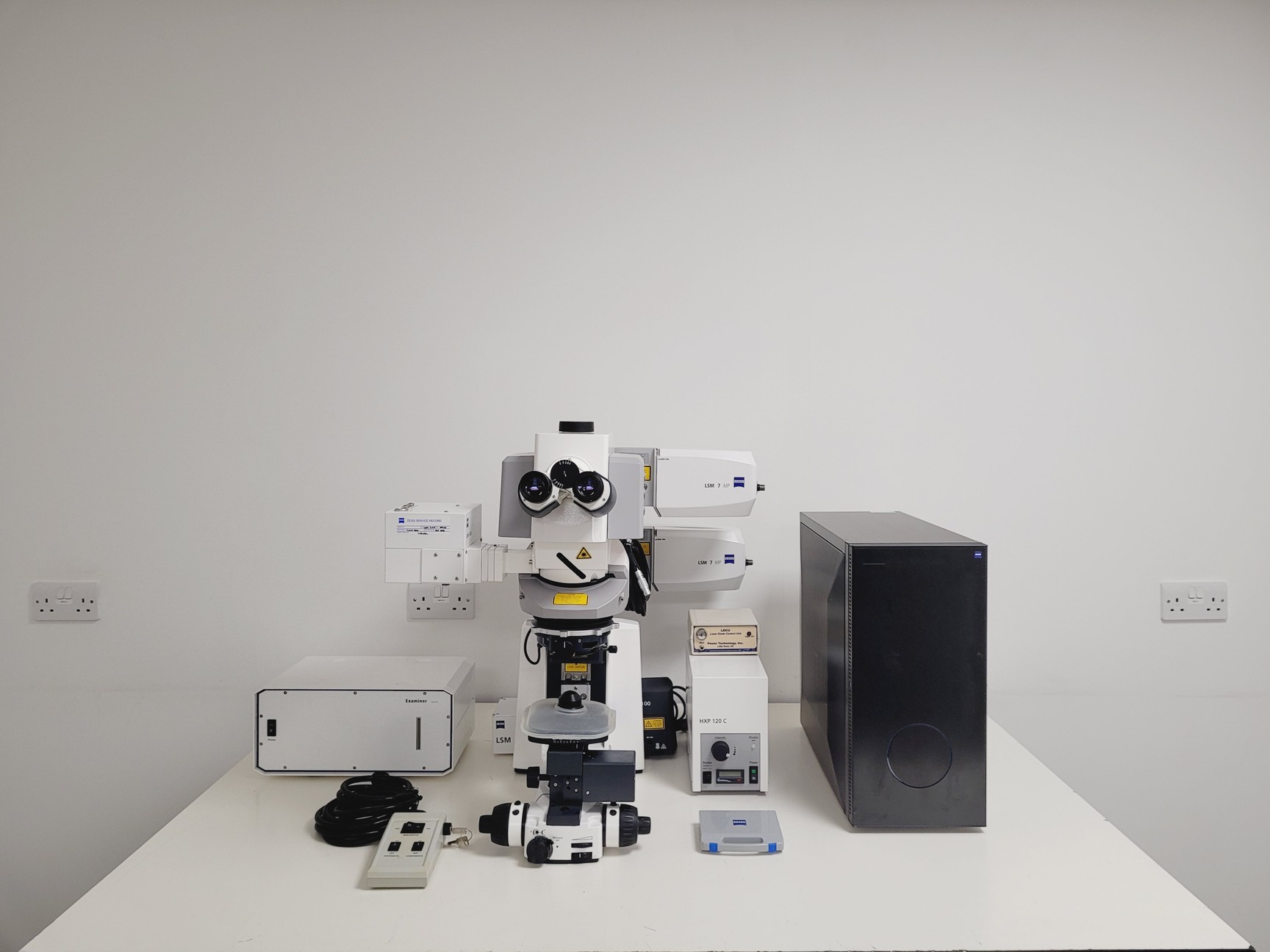

Description Zeiss Examiner.Z1 Axio Upright 2MP with LSM 7 MP Laser System This system was removed from a university laboratory where it was surplus to requirements. The microscope is generally in good cosmetic condition, however damage has occurred during decommissioning by the previous owner. A securing bolt head has been snapped off from the lower LSM 7 MP module, meaning this unit cannot currently be removed from the microscope. The upper module is also incomplete, with only one of the three mounting bolts present. The condenser may also be damaged. All power and communications cables required for operation are missing, and we did not decommission the system ourselves, so full functionality and completeness cannot be confirmed. Though the previous owner has stated it was in working order prior to removal. Due to missing components the system is listed as Spares/Repair. The system comprises the following: • Zeiss Examiner.Z1 Axio Upright Microscope Body, consisting of: • Upper Part (423731-9021-000) • Lower Part (430031-9010-000) Fitted with: • 2 x Zeiss PL 10x/23 Eyepieces (444036-9000) • Zeiss LSM NDD Modul A 2Ch (90") (1410-102) • Zeiss Condenser (424226-9010) – possibly damaged • Zeiss LSM 7 MP Imaging Unit (1346-354) • Zeiss LSM 7 MP Manipulation Unit (1670-627) – snapped securing bolt head • Zeiss T-PMT (1586-527) • Zeiss Schaltspiegel mot-S (1269-455) • HAL 100 Illumination Unit (423000-9901) Laser & Control Components: • Zeiss AOM-Box NLO (2 units) (000000-1522-260) • Power Technology Inc LDCU Laser Diode Control Unit • 1 x 405nm Laser (500w) • 2 x Performa-i Mirror Units Control & Electronics: • Zeiss PT PC with 2 x LVDS PCI Cards (1410-132) • Zeiss Examiner Control Unit (432610-9020-000) • Zeiss e-c Box (1426-762) • Zeiss Remote Control (1426-763) • Zeiss Rack System (1507-182) Illumination: • Zeiss HXP 120 C with Light Pipe Cables: • Various cables included (mainly USB), however many critical power and communication cables are missing
