Zeiss Axioplan 2 with LSM 5 Pascal Confocal Microscope & Multi-Laser System Lab

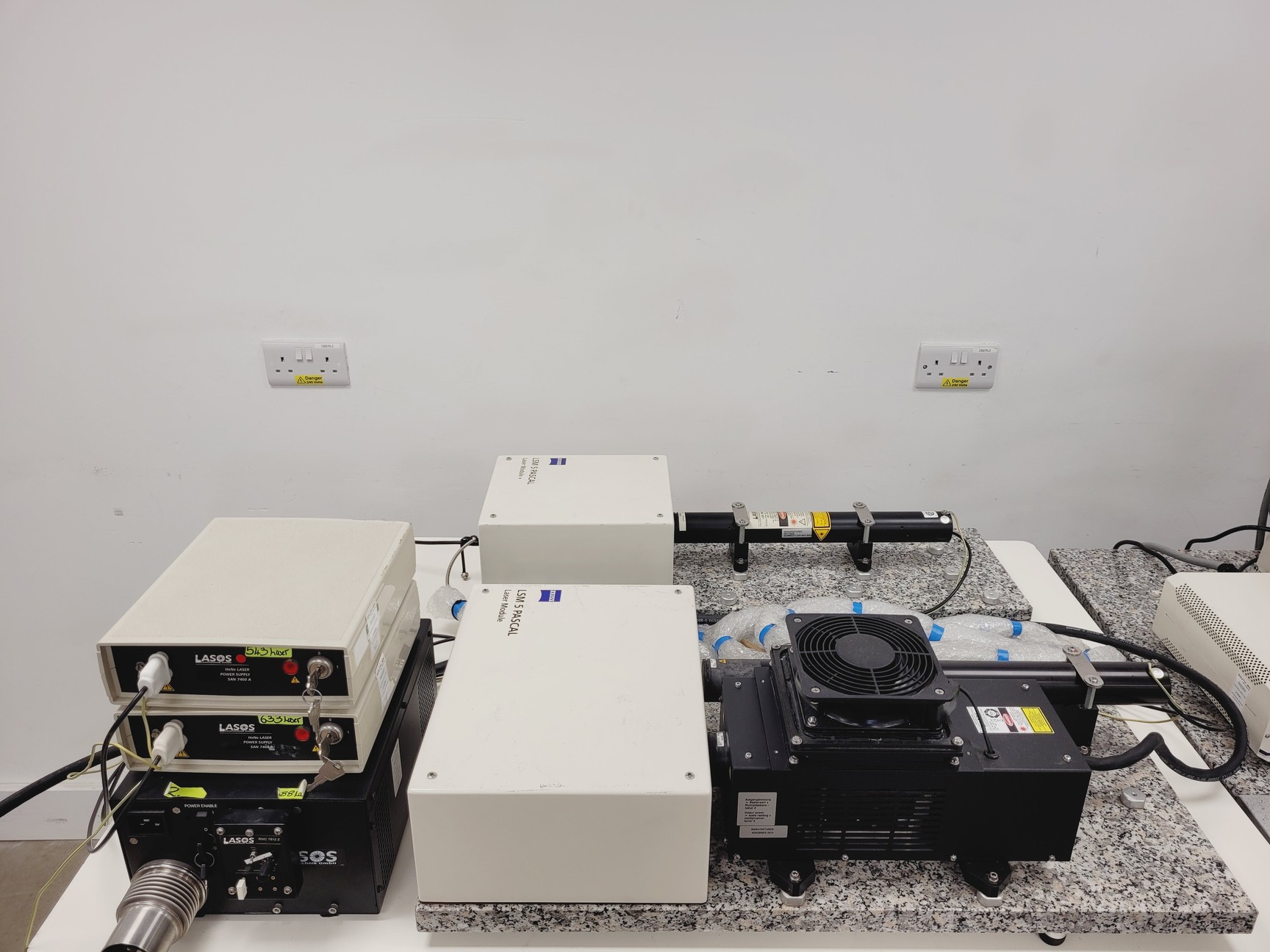

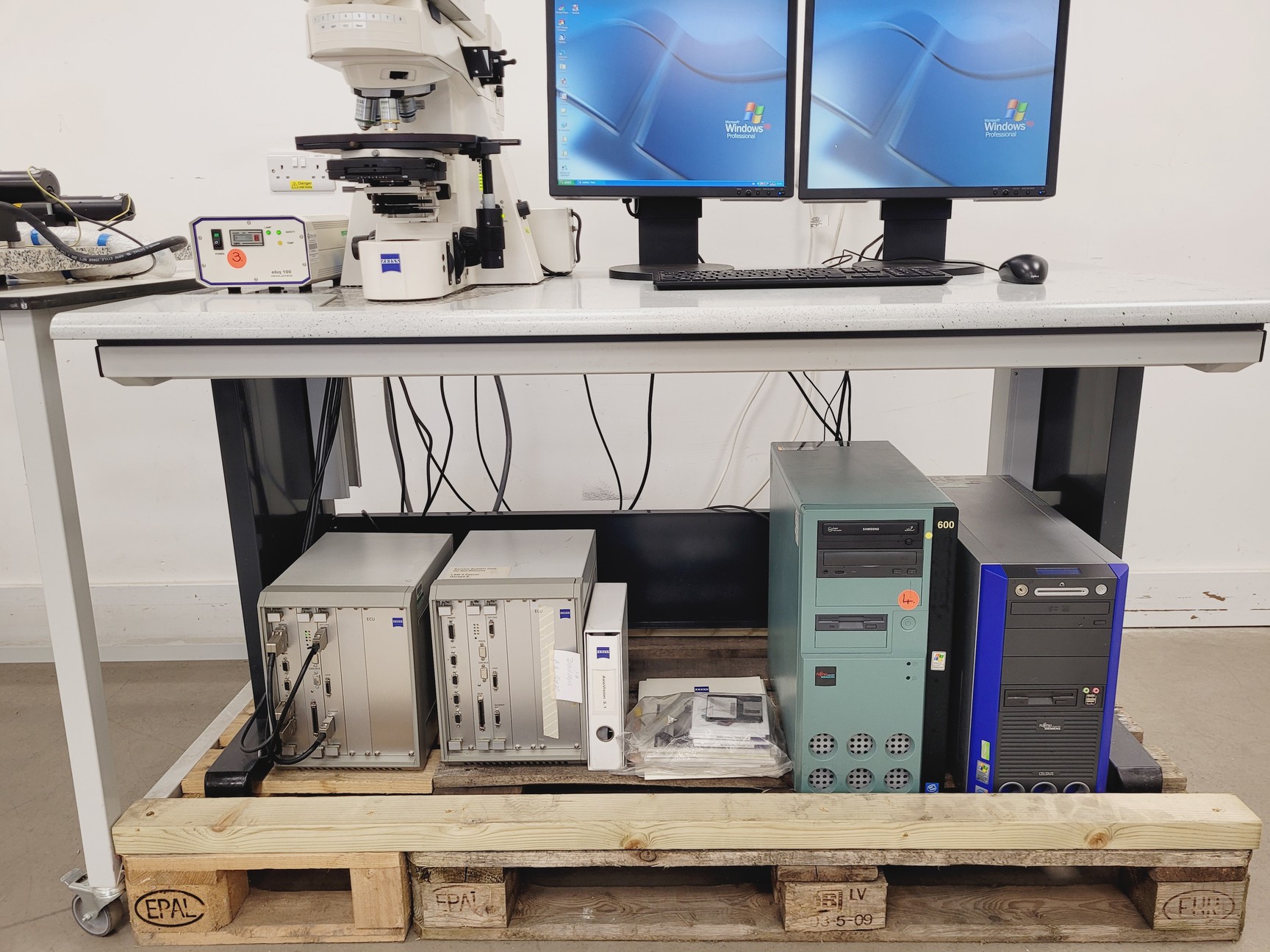

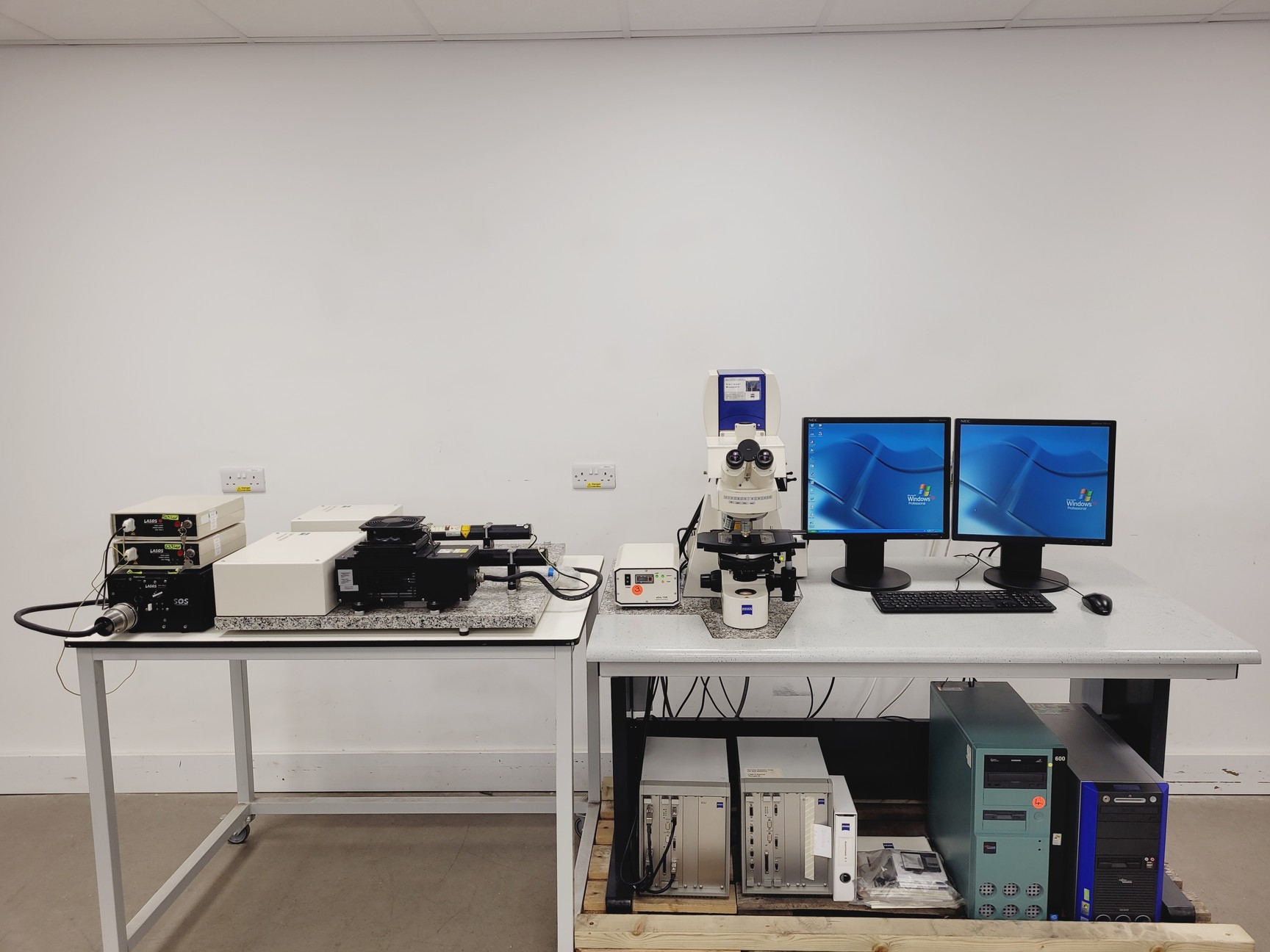

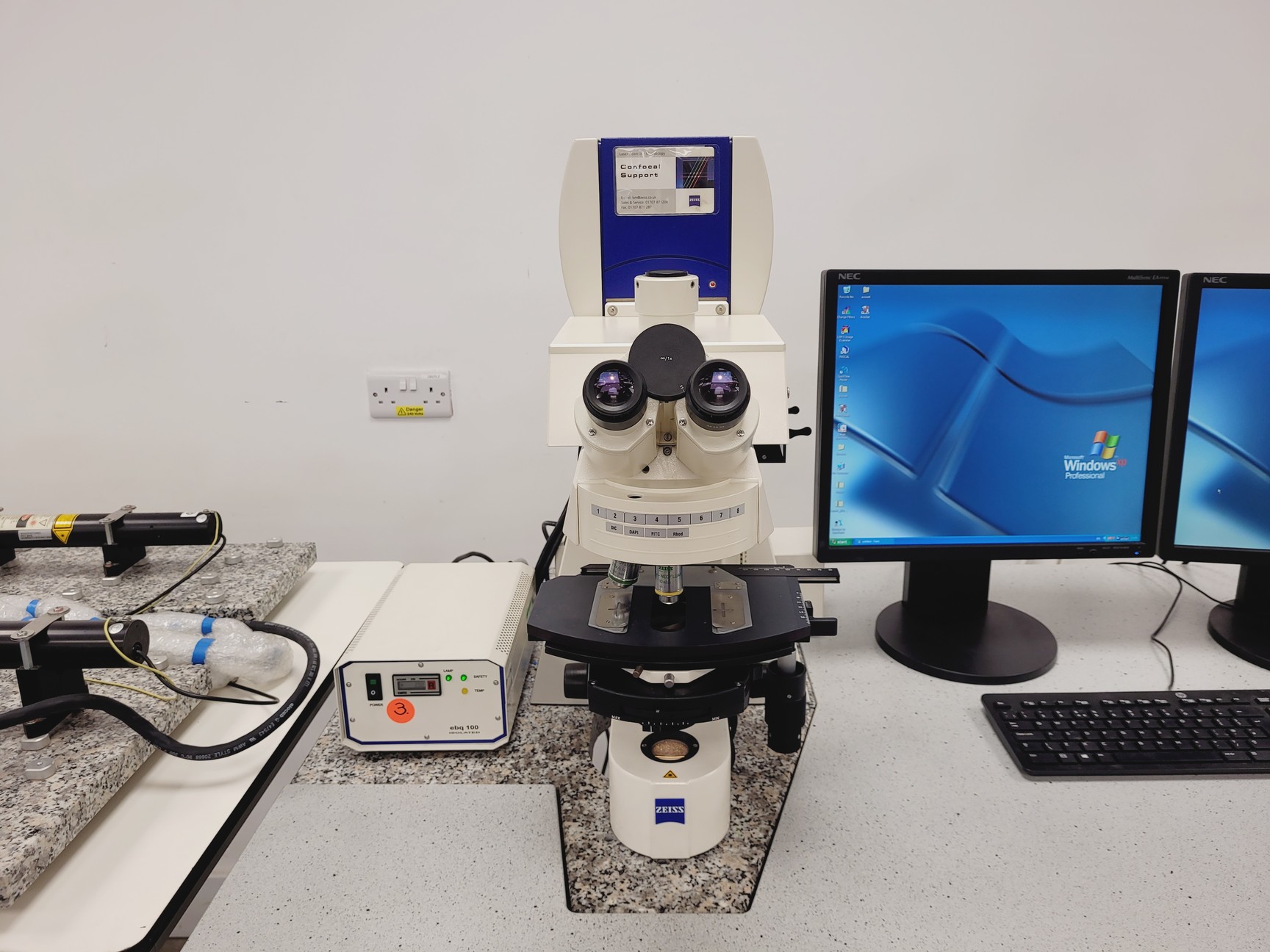

Description Zeiss Axioplan 2/LSM 5 Pascal Confocal Laser System This system was removed from a university laboratory where it was surplus to requirements. The Axioplan 2 microscope has been successfully controlled via the included Pascal software. While the laser modules have not been fully tested, the software allows toggling of the laser control. All components are in good used cosmetic condition. The system comprises the following: • Zeiss Axioplan 2ie MOT microscope stand, fitted with: • Zeiss LSM 5 Pascal VarioTwo • HBO 100 Mercury Lamp with ebq100 power supply • 4 x Filter Cubes: DIC, DAPI, FITC, Rhod • 2 x Zeiss 44 40 34 Pl 10x/25 Eyepieces • Zeiss 1067-325 Axio Mechanical Rotating Stage • Zeiss 1159-530 Condenser • Zeiss 1058-431 Light Channel • Zeiss 1095-490 Switching Mirror • HAL 100 Halogen Lamp • 6-position nosepiece with objectives: • Zeiss Plan-NEOFLUAR 10x/0.3 ∞/0.17 • Zeiss Plan-NEOFLUAR 20x/0.50 ∞/0.17 • Zeiss Plan-NEOFLUAR 40x/1.3 Oil ∞/0.17 • Zeiss Plan-APOCHROMAT 63x/1.4 Oil Ph3 ∞/0.17 • Zeiss LSM 5 Pascal Laser Module, including: • Lasos LGK 7786 P 543nm Laser (June 2011) with Lasos SAN 7460A power supply • Lasos LGK 7812 ML04 450–530nm Laser (November 2014) with Lasos LGN 7812-01 power supply • Zeiss LSM 5 Pascal Laser Module +, including: • Lasos LGK 7628-1 633nm Laser (May 2002) with Lasos SAN 7460A power supply • Computer & Software: • Fujitsu Siemens Celsius PC with Windows XP (password removed), Pascal Software installed, and serial hardware dongle • 2 x NEC monitors, keyboard & mouse • AxioVision software CDs • Zeiss Pascal 5 ECU Units: • 1 x ECU tested and working with this system • 1 x ECU marked 'DEAD 5v' (included untested as a spare) • Spare PC: • Fujitsu Siemens Celsius 670 (non-booting, Windows 2000) – included for spare parts • Other: • Isolation table is included • Table pictured with lasers is not included
