Zeiss LSM 780 Confocal Microscope System Observer .Z1 Zeiss Zen Software Lab

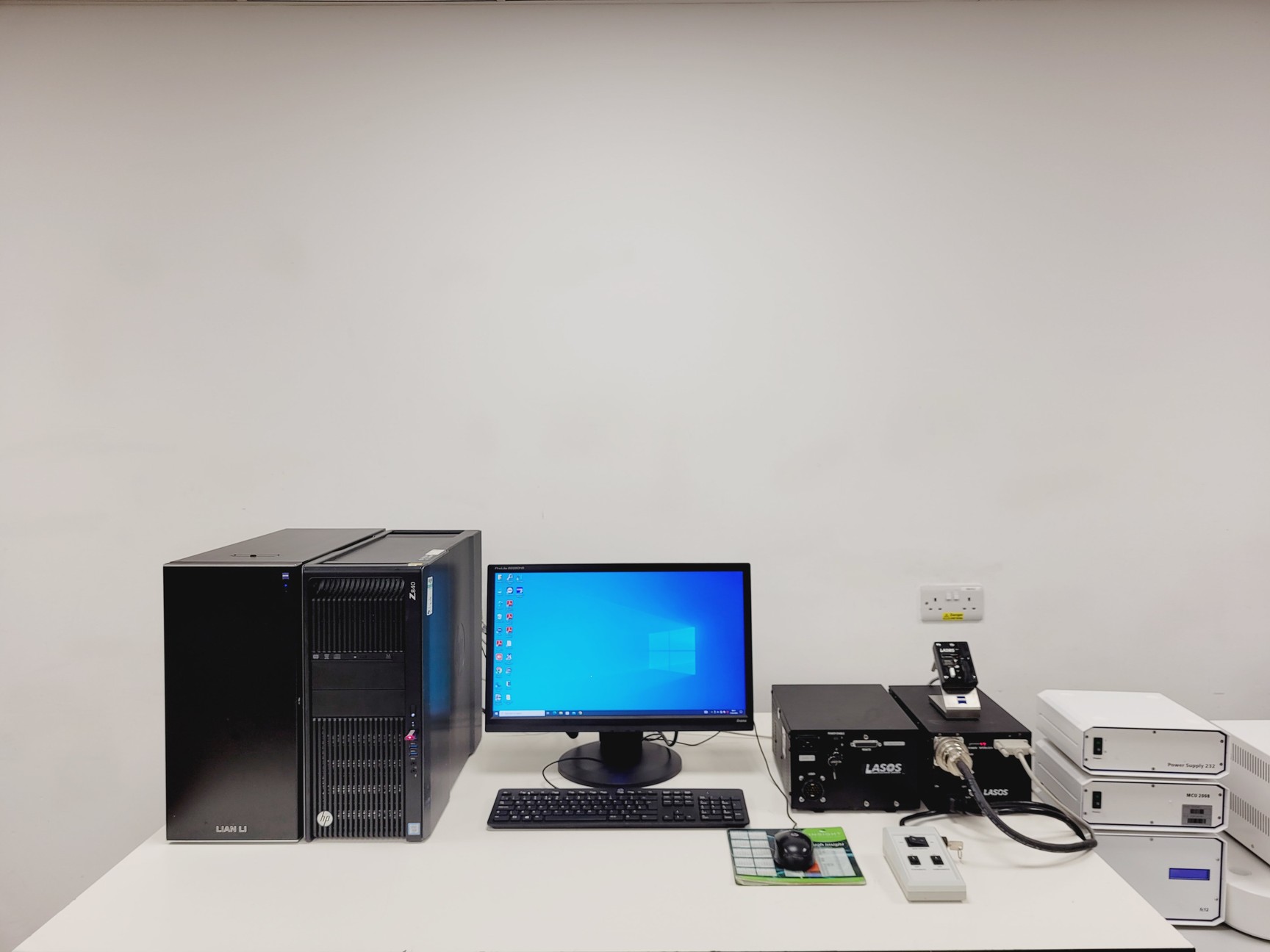

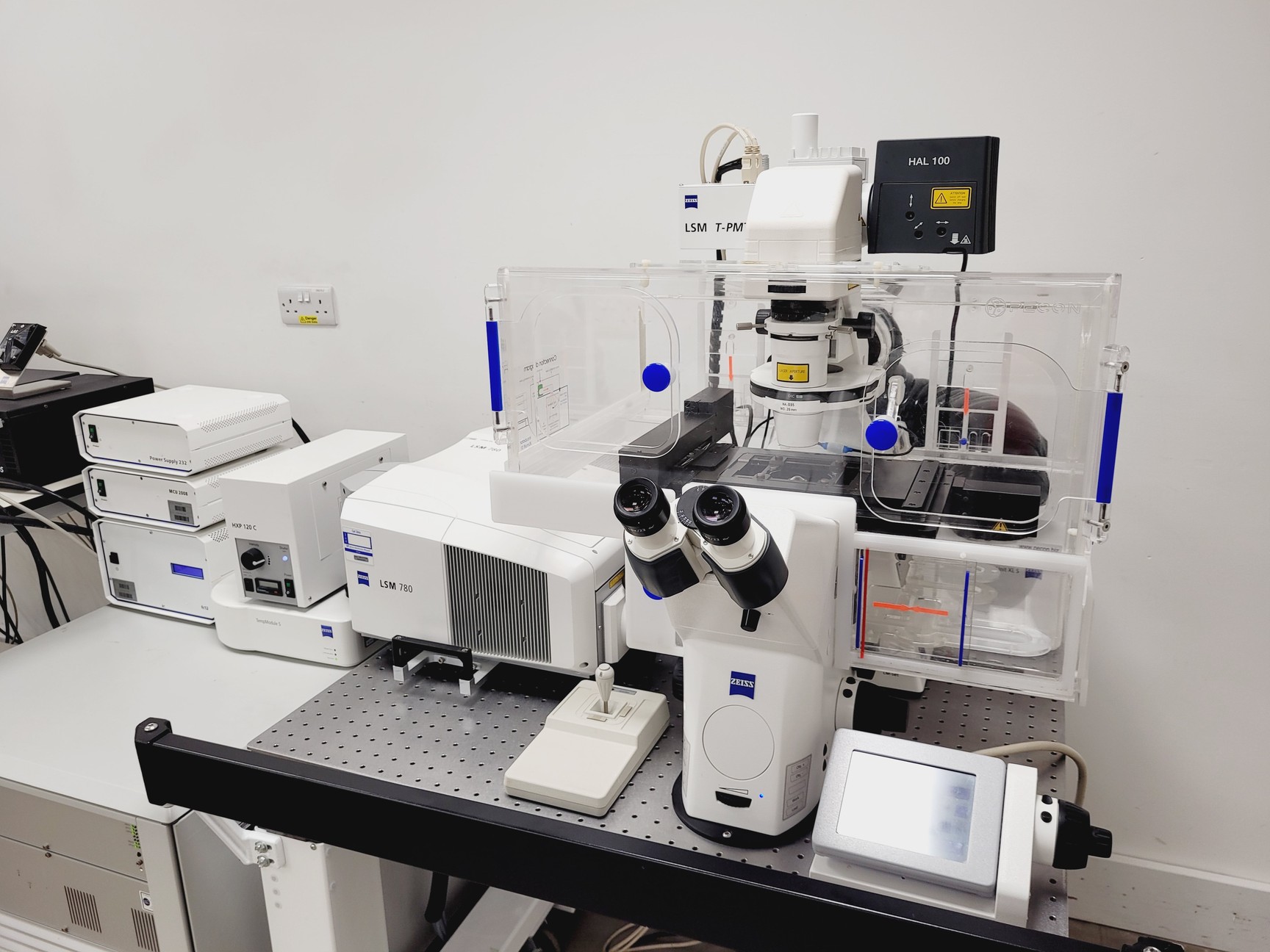

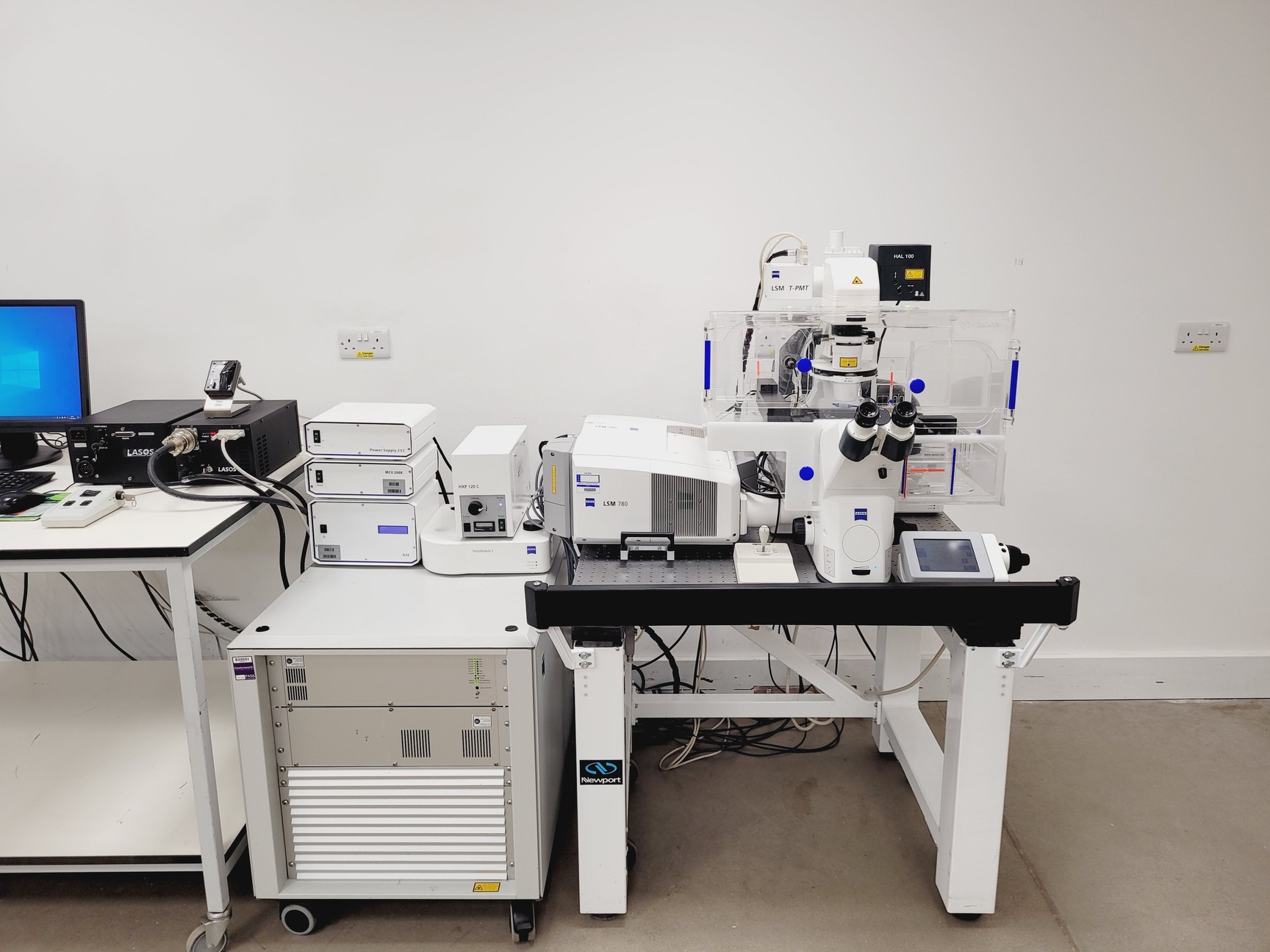

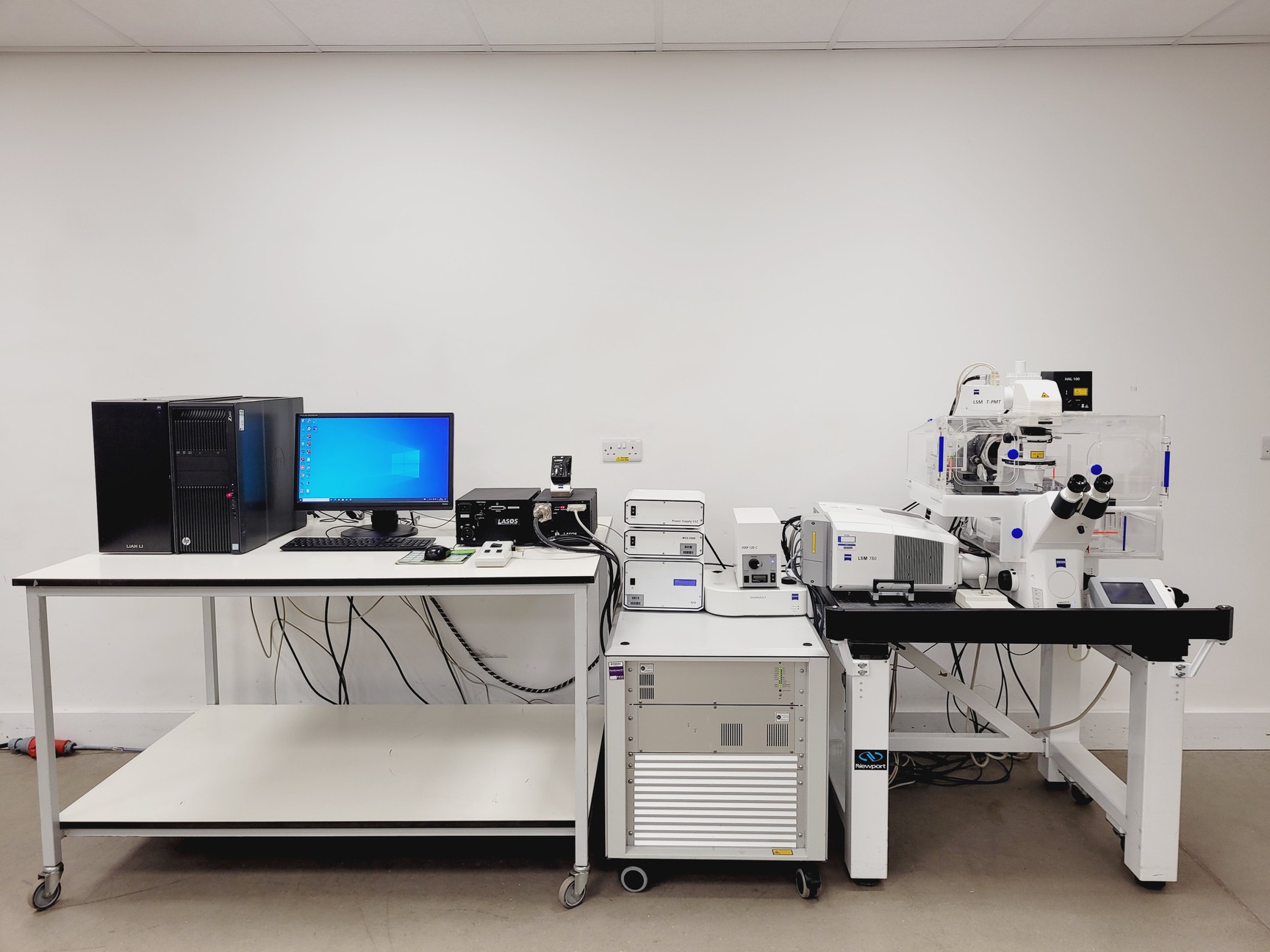

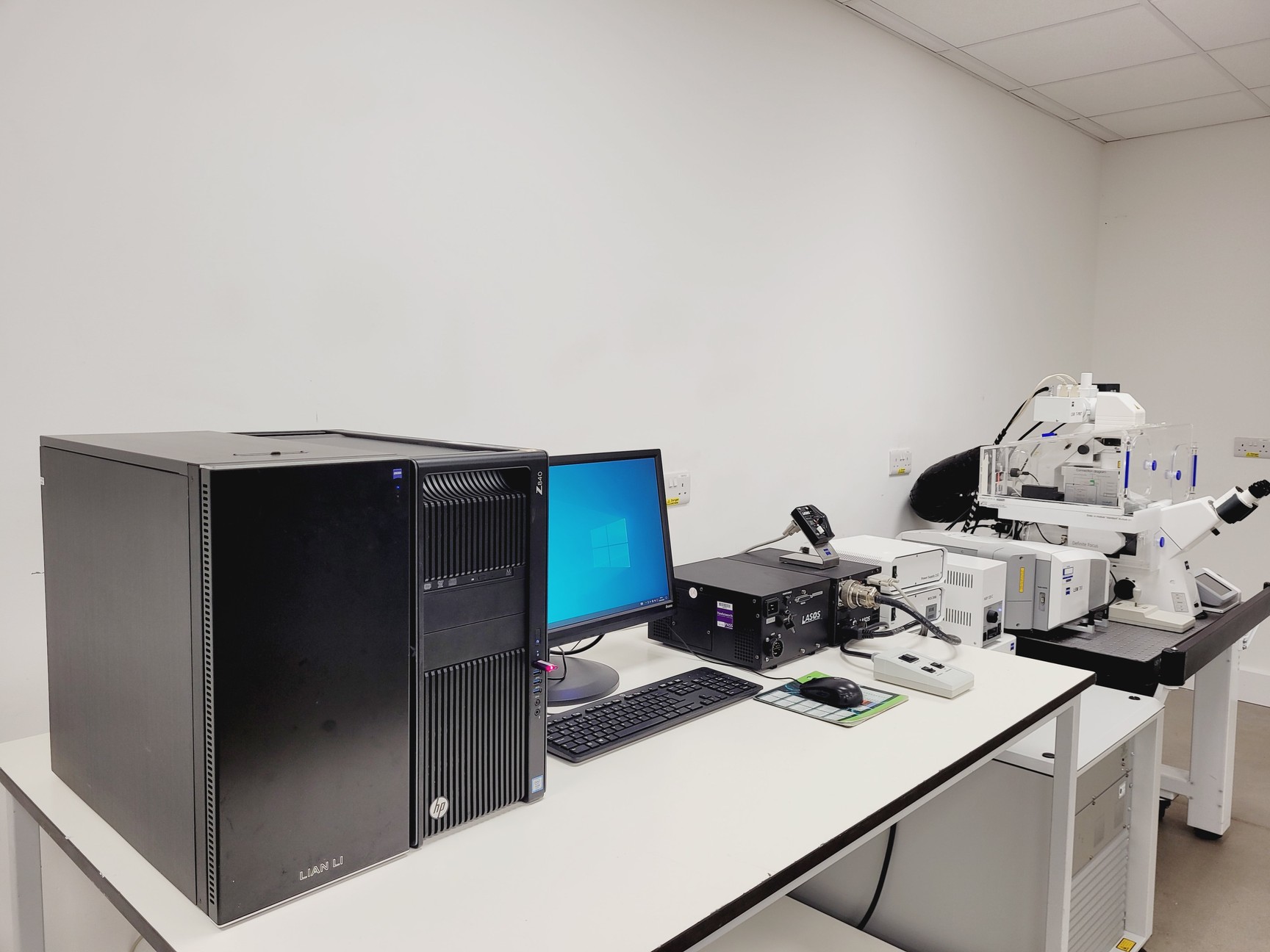

Description Zeiss LSM780 Confocal Microscope System Observer .Z1 with Zeiss Zen Software This system was removed from a university lab where it was surplus to requirements. It powers on and was reported to be in working order prior to removal. An external Zeiss service engineer has since inspected the system (full report available). The microscope can focus on slides, the environmental system operates, and the stage can be controlled via the joystick. CAN communication has been tested via the PC. It is recommended that a Zeiss engineer completes the setup and commissioning. This system comprises: • Zeiss Observer .Z1 Microscope with Scan IM 130x100 DC - 1mm motorized stage and two specimen holders • Zeiss LSM T-PMT Transmitted Detection Module • HAL 100 Halogen Lamp • Objectives: C-APOCHROMAT 10x/0.45W, LD LCI Plan-APOCHROMAT 25x/0.8 1mm Korr DIC (UV) VIS-IR, C-APOCHROMAT 40x/1.2 W Korr UV-VIS-IR, Plan--APOCHROMAT 63x/1.40 Oil DIC, Plan-APOCHROMAT 100x/1.4 Oil DIC • Two Zeiss Pl 10x/23 444036-9000 Eyepieces • Zeiss LSM780 Scan Head • Zeiss Main Control System (3Phase 16amp) • Zeiss TFT LCD Touchscreen Controller • Wienecke & Sinske JoyMach4 Joystick Stage Controller • Zeiss Remote 1426-763 • Zeiss Safety Switch Box • Lasos LSN 3001 and LGN7812 Laser PSUs with a Lasos RMC 7812 72 remote • Additional Argon power supply (included and tested) • 1 x Zeiss LSM780 Scan Head with 4 x laser lines: • Red. • Green. • Blue. • 405nm. • Pecon Incubator XLmulti S1 Stage Enclosure with Pecon/Zeiss Temp Module S and Heating Unit XLS (cracked hose inlet) • We also have a brand new XLmulti available by request, at extra cost. • Zeiss MCU 2008, Power Supply 232, Fc12 Definite Focus Controller with Definite Focus Unit • Zeiss HXP120C Fluorescence Light Source with a non-functional Kubler Lamp Hour Timer (needs a new battery) • HP PC with monitor, keyboard, mouse, Windows 10 OS, 8TB storage, various versions of Zeiss Zen Software (latest version 2.1 SP3), and a Zeiss dongle • Zeiss Live View RTPC • All necessary cables and manuals Please note: CO₂ module, heated stage insert, Aqua stop bottle/pipe missing. Commissioning is advised due to the observations in the engineer report.
