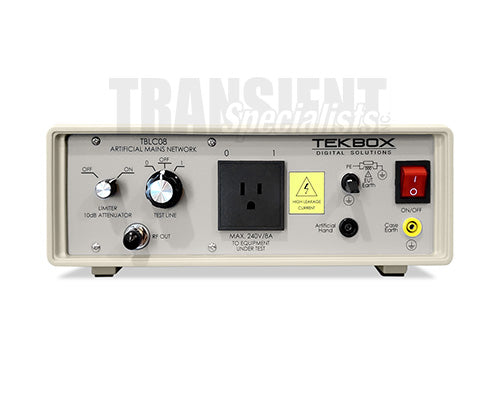

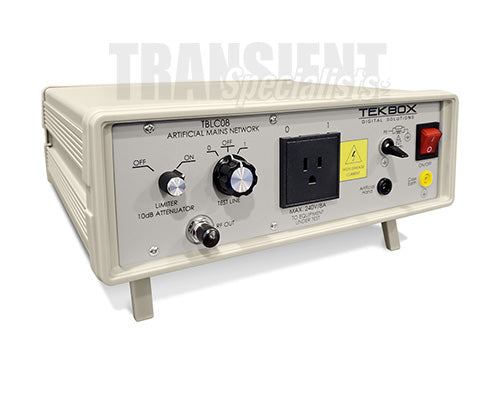

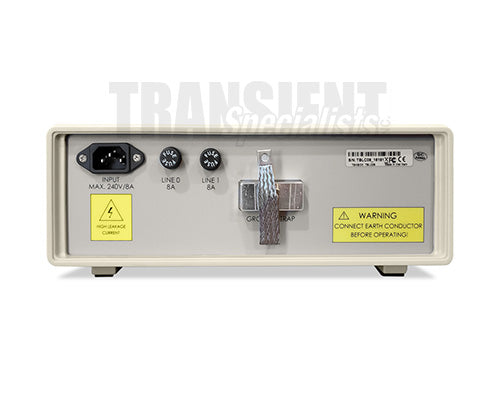

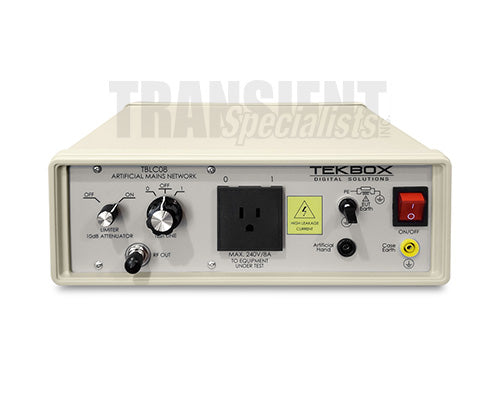

TekBox TBLC08

The TBLC08 is an affordable Line Impedance Stabilization Network targeting pre-compliance measurements of line-conducted interference within the range of 9kHz to 30MHz, according to the CISPR16 standard. The device is designed for testing single phase, AC-powered equipment with supply voltages up to maximum 260V. Conducted noise can be measured on the phase and on the neutral conductor. The TBLC08 is equipped with a switchable limiter/attenuator and an artificial hand connection. The LISN is supported by the Tekbox EMC software, making pre-compliance measurements an easy task.
