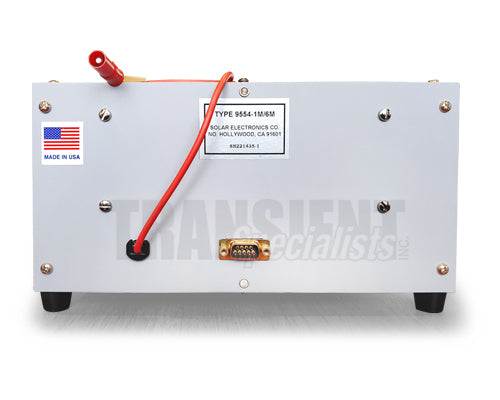

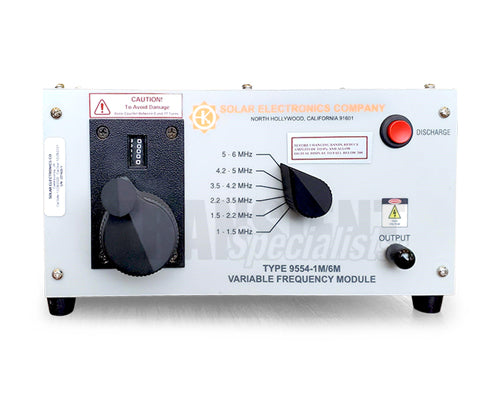

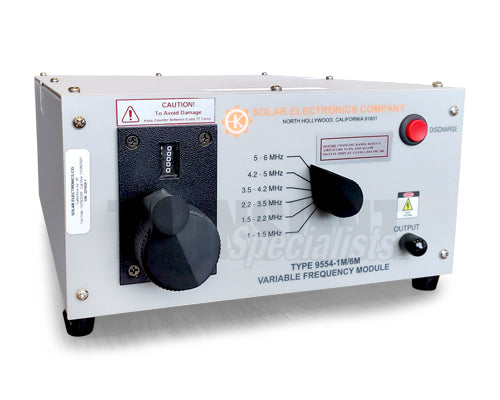

Solar 9554-1M/6M

The SOLAR Type 9554- ( ) VARIABLE FREQUENCY MODULES are designed as accessories for the SOLAR Model 9354-1 TRANSIENT GENERATOR. They provide the variable frequency capability required by MIL-STD-462D, Method CS116. There is a curve showing the maximum output voltage required when measured across 50 ohms of a 100 ohm loop in MIL-STD-462D, Figure CS116-1 (Typical test setup for calibration of test waveform). This is useful in determining the peak voltage necessary to achieve the required peak current.
